Product Application
The shell can be made of plastic or stainless steel, with flexible specifications: the inner diameter of the core-through current transformer can be selected from 50 to 60 mm according to the cable specifications; the outer diameter can be selected from 165 to 200 mm due to the different phase spacing of equipment from different GIS manufacturers; the height can be selected from 200 to 400 mm due to the electrical parameter requirements of the project and the space limitations of the equipment cable compartment.
Execution Standard
GB/T20840.2-2014
Technical Parameters
● Rated Secondary Current: 5A/1A
● Rated Continuous Thermal Current: 120%ln
● Power Frequency Withstand Voltage: 3kV/1min/50Hz
● Instrument Safety Factor: FS ≤ 5
Conditions of Use
Technical Parameter Table
Product Category | Measuring Current Transformer | Protection Current Transformer | ||
Rated Current Ratio | Accuracy Class and Rated Load (VA) | |||
30/1 | 0.5 | 1.0 | 10P10 | 10P5 |
1/1 |
| 1.5 |
| 1.5 |
40/1 | 1 | 2.5 | 1 | 2.5 |
50/1 | 1.5 | 2.5 | 1.5 | 2.5 |
75/1 | 2.5 | 3.75 | 2.5 | 3.75 |
100/1 | 3.75 | 5 | 2.5 | 5 |
150/1 |
| 1.5 |
| 1.5 |
200/1 | 1.5 | 2.5 | 1.5 | 2.5 |
50/5 | 1.5 | 2.5 | 1.5 | 2.5 |
75/5 | 2.5 | 3.75 | 2.5 | 3.75 |
100/5 | 3.75 | 5 | 2.5 | 5 |
150/5 | 2.5 | 5 | 3.75 | 7.5 |
200/5 | 5 | 7.5 | 5 | 10 |
Dimensional Drawing
Keywords
indoor single-phase current transformer
Contact Us
Category
Product Application
The shell can be made of plastic or stainless steel, with flexible specifications: the inner diameter of the core-through current transformer can be selected from 50 to 60 mm according to the cable specifications; the outer diameter can be selected from 165 to 200 mm due to the different phase spacing of equipment from different GIS manufacturers; the height can be selected from 200 to 400 mm due to the electrical parameter requirements of the project and the space limitations of the equipment cable compartment.
Execution Standard
GB/T20840.2-2014
Technical Parameters
● Rated Secondary Current: 5A/1A
● Rated Continuous Thermal Current: 120%ln
● Power Frequency Withstand Voltage: 3kV/1min/50Hz
● Instrument Safety Factor: FS ≤ 5
Conditions of Use
Technical Parameter Table
Product Category | Measuring Current Transformer | Protection Current Transformer | ||
Rated Current Ratio | Accuracy Class and Rated Load (VA) | |||
30/1 | 0.5 | 1.0 | 10P10 | 10P5 |
1/1 |
| 1.5 |
| 1.5 |
40/1 | 1 | 2.5 | 1 | 2.5 |
50/1 | 1.5 | 2.5 | 1.5 | 2.5 |
75/1 | 2.5 | 3.75 | 2.5 | 3.75 |
100/1 | 3.75 | 5 | 2.5 | 5 |
150/1 |
| 1.5 |
| 1.5 |
200/1 | 1.5 | 2.5 | 1.5 | 2.5 |
50/5 | 1.5 | 2.5 | 1.5 | 2.5 |
75/5 | 2.5 | 3.75 | 2.5 | 3.75 |
100/5 | 3.75 | 5 | 2.5 | 5 |
150/5 | 2.5 | 5 | 3.75 | 7.5 |
200/5 | 5 | 7.5 | 5 | 10 |

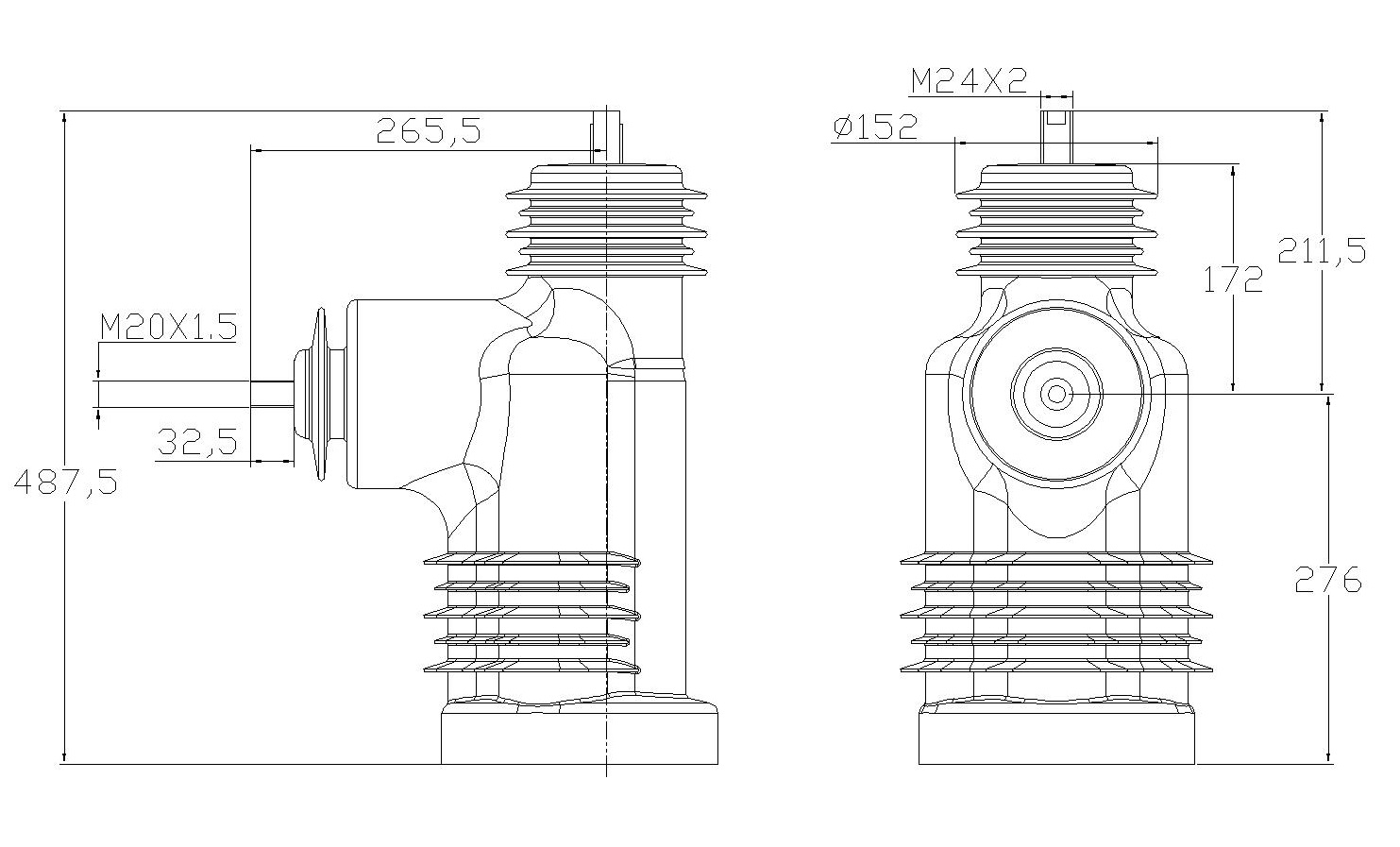

Dimensional Drawing
