Product Overview
LZZBJ9-10C2Q/3 current transformer is an indoor epoxy resin cast pillar-type full-duty product. It is used for relay protection and electric energy measurement in power systems with a rated frequency of 50Hz and a rated voltage of 10kV and below. LZZBJ9-C2Q/3 is installed in a center-mounted switchgear or other types of switchgear.
Product Features
Operating Conditions
● Ambient temperature between -40℃ and 70℃, with a daily average temperature not exceeding 35℃.
● No significant dust, smoke, corrosive gases, steam, or salt contamination.
● Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90%.
● Altitude not exceeding 1000 meters.
Standards
GB/T20840.2-2014
Technical Parameters
Rated Secondary Current: 5A, 1A
| Rated Primary Current (A) | Accuracy Class Combination | Rated Output (VA) | Rated Thermal Current (kA/1S) | Rated Dynamic Stability Current (kA) |
| 20-30 | 0.2S/10P15 | 10/15 | 2.5 | 6.25 |
| 0.5/10P15 | 10/15 | |||
| 0.2S/10P20 | 15/20 | 3.5 | 8.75 | |
| 0.5/10P20 | 15/20 | |||
| 40 | 0.2S/10P15 | 10/15 | 4.0 | 10 |
| 0.5/10P15 | 10/15 | |||
| 0.2S/10P20 | 15/20 | 6.0 | 15 | |
| 0.5/10P20 | 15/20 | |||
| 50-100 | 0.2S/10P15 | 10/15 | 7.5 | 18.75 |
| 0.5/10P15 | 10/15 | |||
| 0.2S/10P20 | 15/20 | 11.25 | 85 | |
| 0.5/10P20 | 15/20 | |||
| 150-500 | 0.2S/10P15 | 10/15 | 45 | 110 |
| 0.5/10P15 | 10/15 | |||
| 0.2S/10P20 | 15/20 | 45 | 110 | |
| 0.5/10P20 | 15/20 | |||
| 600-3150 | 0.2S/10P15 | 10/15 | 110 | 215 |
| 0.5/10P15 | 10/15 | |||
| 0.2S/10P20 | 15/20 | 110 | 215 | |
| 0.5/10P20 | 15/20 |
Dimensions
Keywords
current transformer
Contact Us
Category
Product Overview
LZZBJ9-10C2Q/3 current transformer is an indoor epoxy resin cast pillar-type full-duty product. It is used for relay protection and electric energy measurement in power systems with a rated frequency of 50Hz and a rated voltage of 10kV and below. LZZBJ9-C2Q/3 is installed in a center-mounted switchgear or other types of switchgear.
Product Features
Operating Conditions
● Ambient temperature between -40℃ and 70℃, with a daily average temperature not exceeding 35℃.
● No significant dust, smoke, corrosive gases, steam, or salt contamination.
● Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90%.
● Altitude not exceeding 1000 meters.
Standards
GB/T20840.2-2014
Technical Parameters
Rated Secondary Current: 5A, 1A
| Rated Primary Current (A) | Accuracy Class Combination | Rated Output (VA) | Rated Thermal Current (kA/1S) | Rated Dynamic Stability Current (kA) |
| 20-30 | 0.2S/10P15 | 10/15 | 2.5 | 6.25 |
| 0.5/10P15 | 10/15 | |||
| 0.2S/10P20 | 15/20 | 3.5 | 8.75 | |
| 0.5/10P20 | 15/20 | |||
| 40 | 0.2S/10P15 | 10/15 | 4.0 | 10 |
| 0.5/10P15 | 10/15 | |||
| 0.2S/10P20 | 15/20 | 6.0 | 15 | |
| 0.5/10P20 | 15/20 | |||
| 50-100 | 0.2S/10P15 | 10/15 | 7.5 | 18.75 |
| 0.5/10P15 | 10/15 | |||
| 0.2S/10P20 | 15/20 | 11.25 | 85 | |
| 0.5/10P20 | 15/20 | |||
| 150-500 | 0.2S/10P15 | 10/15 | 45 | 110 |
| 0.5/10P15 | 10/15 | |||
| 0.2S/10P20 | 15/20 | 45 | 110 | |
| 0.5/10P20 | 15/20 | |||
| 600-3150 | 0.2S/10P15 | 10/15 | 110 | 215 |
| 0.5/10P15 | 10/15 | |||
| 0.2S/10P20 | 15/20 | 110 | 215 | |
| 0.5/10P20 | 15/20 |

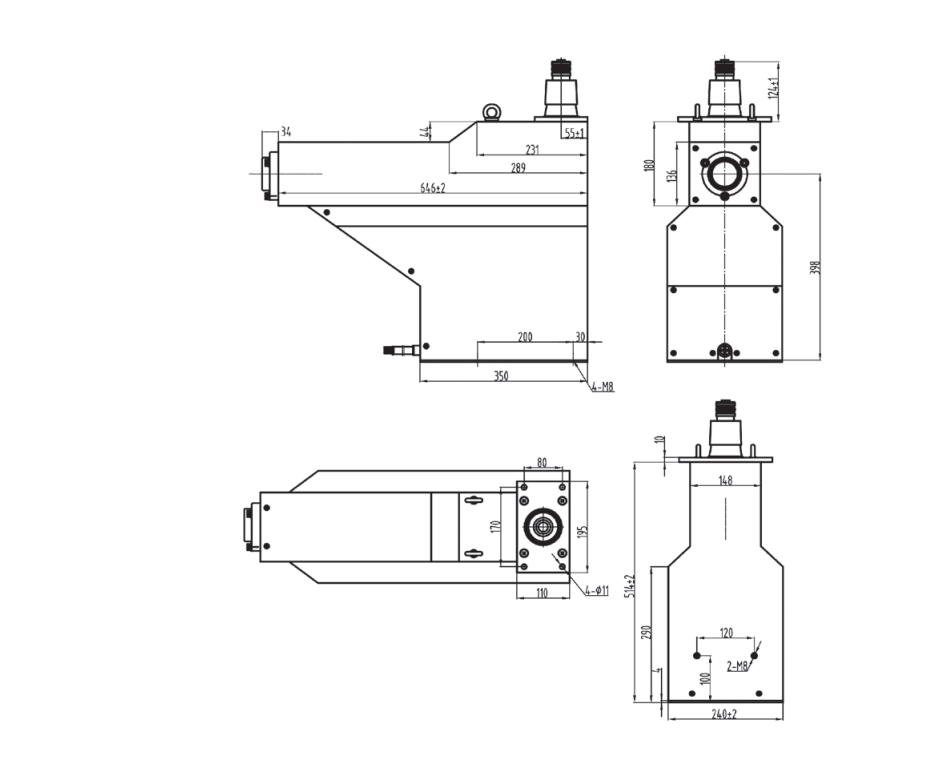

Dimensions
Get a Quote
