Technical Parameters
● Rated frequency: 50Hz, 60Hz
● Rated voltage factor: 1.9Upr 8h
● Insulation thermal class: Class E
● Insulation structure: Semi-insulated
● Power factor: cosΦ=0.8
● External shielding method: Metal shell
● Standard 2# outer cone
● Fuse: With replaceable fuse, size: Φ37×420mm
Technical Parameter Table
| Rated Voltage Ratio (kV) | Accuracy Class Combination | Rated Output (VA) | Thermal Limit Output (VA) | Rated Insulation Level (kV) |
| 35/√3/0.1/√3/0.1 | 0.2/3P 0.5/3P | 40/100 100/100 | 400 | 40.5/95/200 |
| 35/√3/0.1/1/√3/0.1/3 | 0.2/0.5/3P | 30/30/100 | 300 | 40.5/95/200 |
| 35/√3/0.1/1/√3/0.1/√3/0.1/3 | 0.2/0.5/0.5/3P | 15/20/20/100 | 300 | 40.5/95/200 |

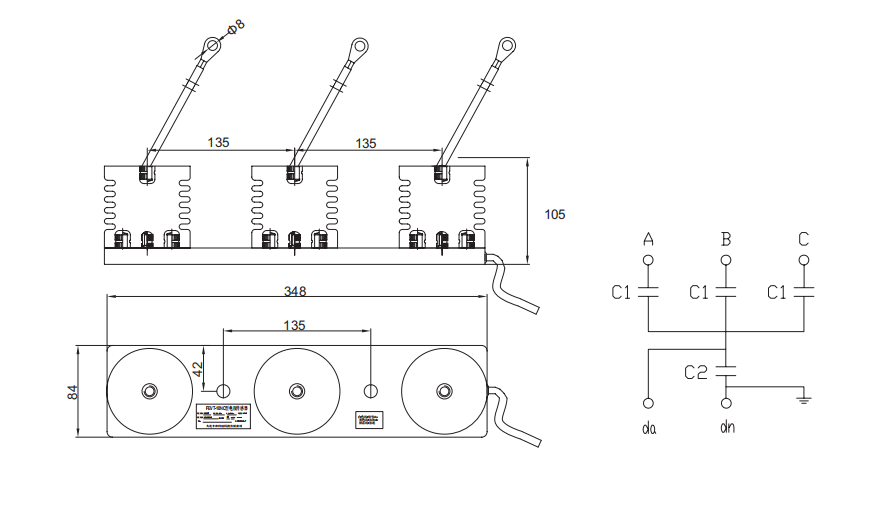

Dimensional Drawing
Keywords
Voltage transformer
Contact Us
Category
Technical Parameters
● Rated frequency: 50Hz, 60Hz
● Rated voltage factor: 1.9Upr 8h
● Insulation thermal class: Class E
● Insulation structure: Semi-insulated
● Power factor: cosΦ=0.8
● External shielding method: Metal shell
● Standard 2# outer cone
● Fuse: With replaceable fuse, size: Φ37×420mm
Technical Parameter Table
| Rated Voltage Ratio (kV) | Accuracy Class Combination | Rated Output (VA) | Thermal Limit Output (VA) | Rated Insulation Level (kV) |
| 35/√3/0.1/√3/0.1 | 0.2/3P 0.5/3P | 40/100 100/100 | 400 | 40.5/95/200 |
| 35/√3/0.1/1/√3/0.1/3 | 0.2/0.5/3P | 30/30/100 | 300 | 40.5/95/200 |
| 35/√3/0.1/1/√3/0.1/√3/0.1/3 | 0.2/0.5/0.5/3P | 15/20/20/100 | 300 | 40.5/95/200 |
Dimensional Drawing
